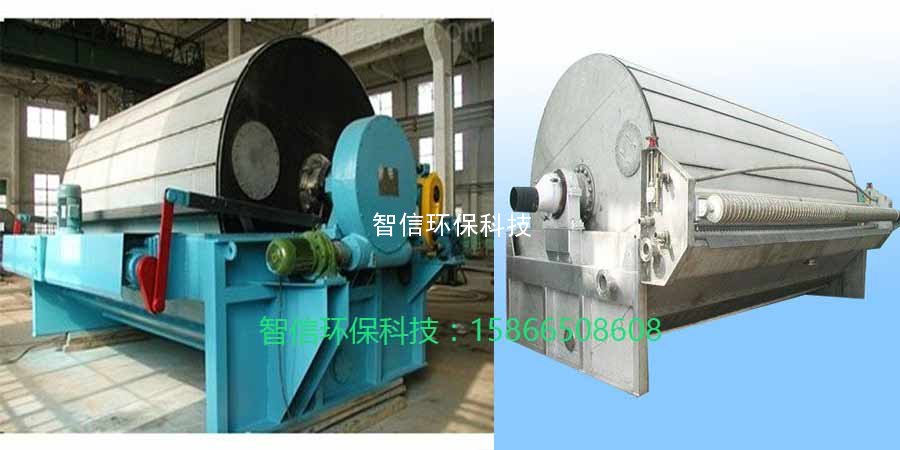

炭黑過濾機

一、簡介
炭黑過濾機是我公司在消化吸收國外先進技術，采用已生產過的外濾式真空轉鼓過濾機的合理結構，研制開發而成的固液分離設備。具有結構緊湊、性能先進、操作自動連續、運轉無級變速、使用維修方便等特點。
Carbon black filter is a kind of solid liquid separation equipment developed by our company in digesting and absorbing foreign advanced technology and adopting the reasonable structure of the vacuum drum filter which has been produced. It has the characteristics of compact structure, advanced performance, automatic continuous operation, stepless speed change, convenient operation and maintenance, etc..

二、工作原理
炭黑真空轉鼓過濾機系刮刀卸料的固液分離設備。過濾時，在真空抽吸作用下，分離濾液透過濾布、濾室與濾管向分配閥匯集，經自動排放缸排出，而固體顆粒被截留在濾布表面上形成濾餅，濾餅轉出液面后，相繼進入脫水區與卸料區。處于卸料區的濾餅，在壓縮空氣的反吹下被吹起由刮刀卸除，至此，一個過來循環即告完成。然后轉入濾漿內，開始下一個工作循環。
The solid-liquid separation equipment of carbon black vacuum drum filter scraper discharging system. In filtering, vacuum suction effect, the filtrate is separated through filter cloth and the filter chamber with the filter to the distribution valve together, is discharged through the automatic discharge cylinder, while the solid particles are trapped in the filter cake is formed on the surface of the filter cake from the liquid surface, have entered the area and discharge area of dehydration. The filter cake in the unloading area is blown off by the scraper under the back blowing of the compressed air, so that a cycle is finished. And then transferred to the slurry, start the next cycle.

三、應用領域
石化、礦山、化工等行業顆粒粒度細、粘度不大物料的脫水過濾
Dewatering and filtration petrochemical, mining and chemical industries, fine particle size low viscosity materials

四、產品特點
1.個性化的設計，滿足不同客戶需求
 personalized design, to meet different customer needs
2.處理量大、產品水分低、回收率高
Large capacity, low moisture, high recovery rate
3.采用平面接觸式分配閥，密封嚴密，壽命長
Tight sealing by plane contact type distributing valve, long service life.
4.拆卸、維修方便，故障率低，使用壽命長
Disassembly, convenient maintenance, low failure rate, long service life
5.全自動化、智能化控制，操作簡便，性能可靠
Full automation, intelligent control, simple operation, reliable performance
